Direct/Indirect Honeycomb TIR-BXIH-P
Pendant
The Billet family of products allows you to achieve uniformity throughout indoor and outdoor spaces while maintaining the same optical performance, light consistency, and overall
aesthetics. Billet Direct/Indirect is a continuation of the award winning Billet family and offers multiple indirect distributions for all linear pendant application needs.

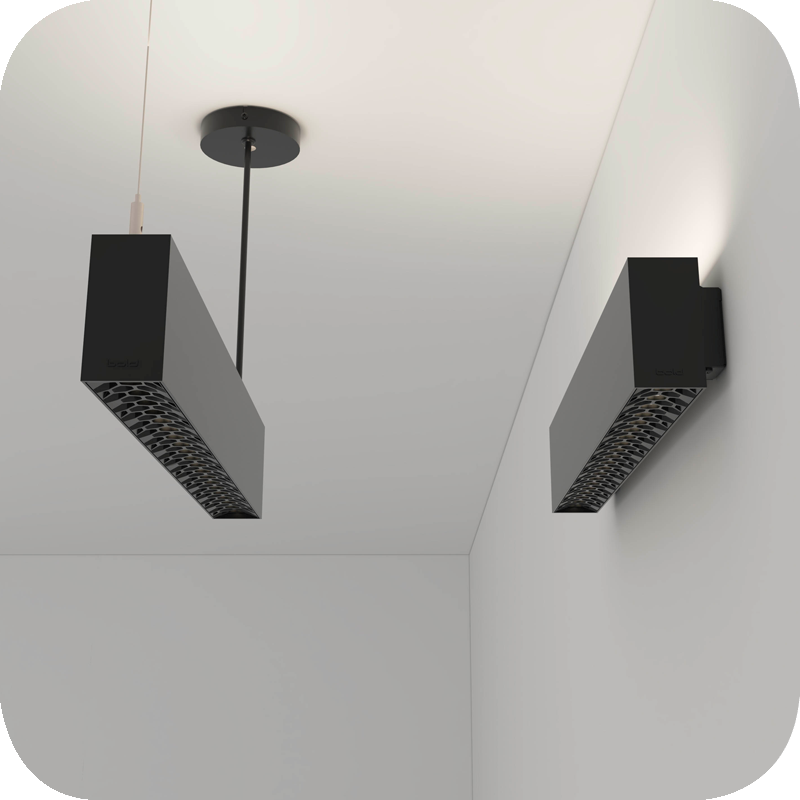

The Billet Direct/Indirect Honeycomb TIR Pendant was designed to provide performance illumination and a decorative aesthetic while maintaining minimal glare. Like all Bold products, the Billet Honeycomb confidently delivers a flawless light distribution and a beautifully finished product. Our Billet family complies with the Build America, Buy America (BABA) requirements.
Specifications
- Delivered Luminous Output: Direct from 430 to 2860 lumens per foot, Indirect from 290 to 1570 lumens per foot
- Light Distributions: Direct: 10° - 20° - 35° - 50° - Elliptical (10°x40°) / (25°x50°), Indirect: Batwing / Lambertian
- Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)1
- Optimal visual comfort - UGR<19
- Standard CRI +80 and High CRI +90
- Dimming Protocol: 0-10V / ELV / DALI / DMX / Lutron Hi-Lume2
1 Denotes output specific to Tunable White at full on.
2 Hi-Lume 1% EcoSystem Soft-on, Fade-to-Black dimming.

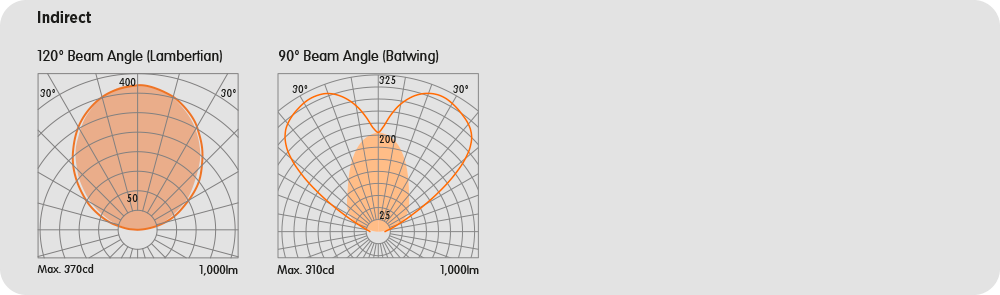

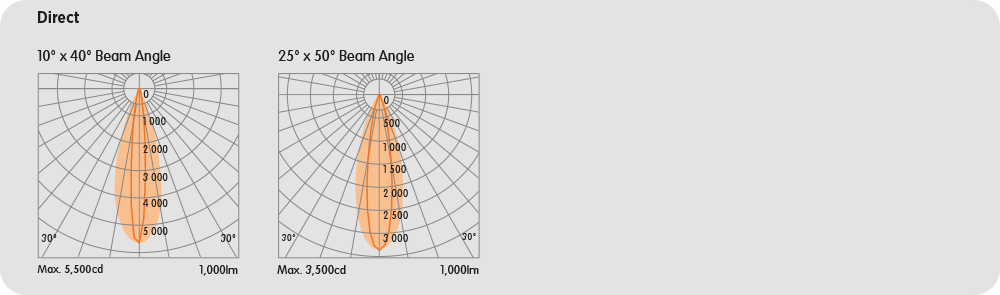

Photometric data: Type C Polar Curves
