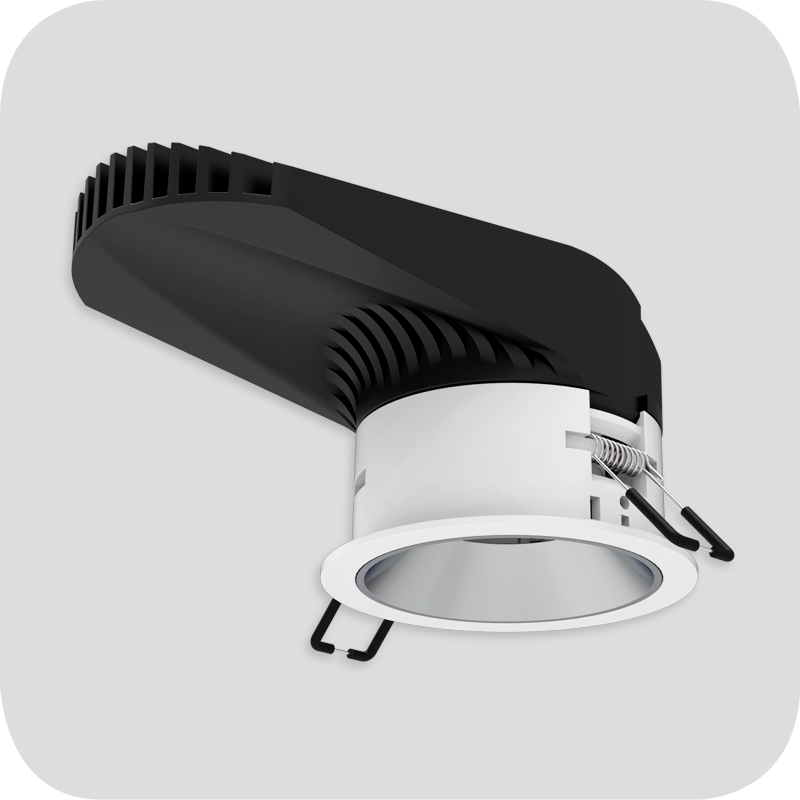

3" Round Shallow Fixed-C3-R-S

Recessed with Trim

Spec-grade performance LED downlights. Optimal for hospitality, commercial, high-end residential, and corporate projects. The Chameleon 3" Round Shallow Fixed Downlight Recessed with Trim, offer a high output, precise optics, a wide range of mounting options, reflector finishes, and optical accessories. Our Downlights family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • Up to 1,500lm delivered output
  • Trim mounting option
  • High CRI, up to +97 CRI, available upon request
  • Dim-to-warm capability 3000K to 1800K
  • Tunable White capability 2700K to 5000K
  • Wide range of optical options
  • 5 years limited warranty
  • Wide range of trims and reflectors finishes
Downlight is inherently IC rated per ETL testing to UL1598 standard and can be installed without a housing when specified with Standard Output (11 Watts). LED driver current is factory set at 260mA.
3
3 3
$standardalt$
Photometric data: Type C Polar Curves
3

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V

Calculate
