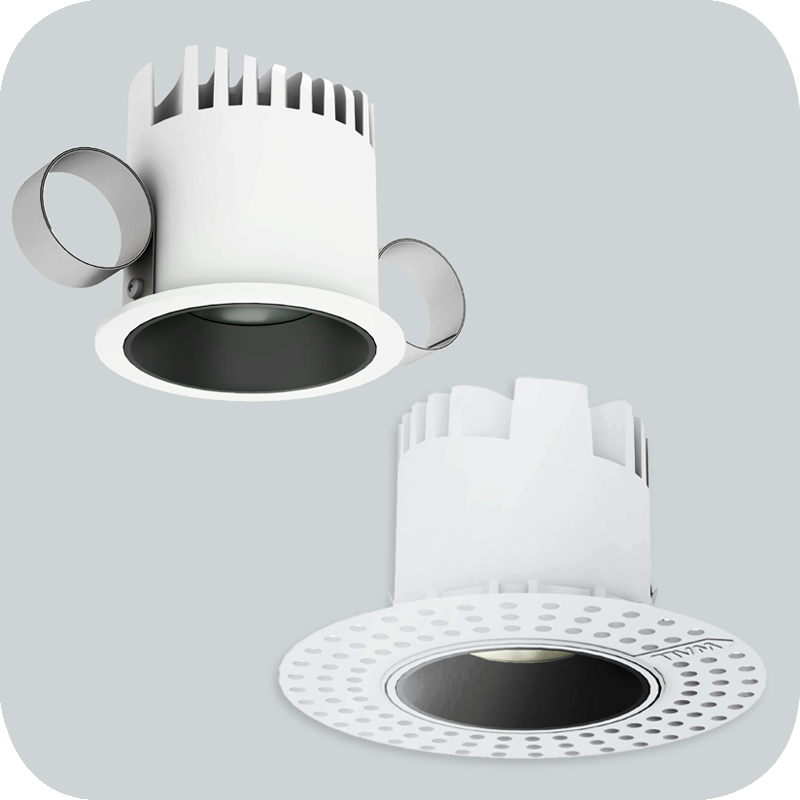

3" Round Streamline

Recessed with Trim | Trimless | Millwork

Bold’s 3” Round Streamlined Downlight Recessed with Trim | Trimless | Millwork, complement the spec grade range of Chameleon downlights by offering an equivalent performance and quality, yet with simplicity that allows it to meet the strictest budgets. Engineered for efficiency and value, the Streamlined Chameleon maintains a high level of flexibility in optical and finish options. It is a great tool for multi-family residential projects as well as large scale corporate and hospitality developments. Our Downlights family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • True 3” overall diameter
  • Accommodates ceiling thicknesses up to 3”

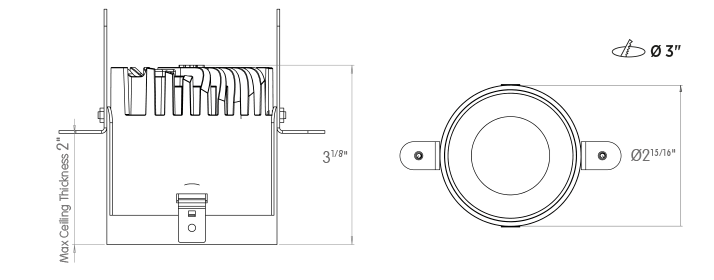

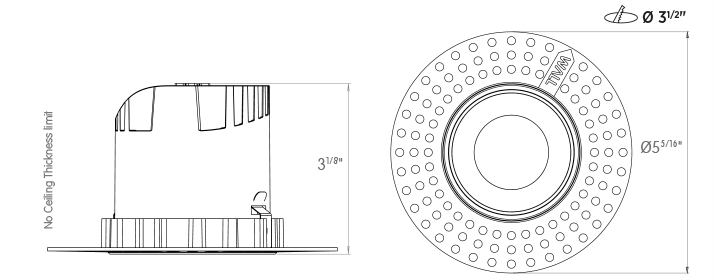

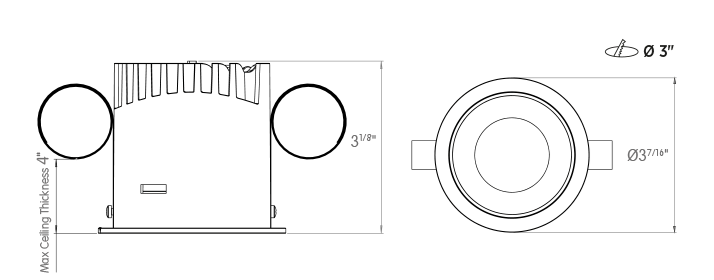

  • Mounting:  Trim - Trimless - Millwork
  • Delivered Lumens:
    • Standard Output: 950 lumens
    • High Output: 1300 lumens
    • Custom Output: 300 – 1300 lumens (100 lumen increments)
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K  – 4000K – Dim to Warm (3000K – 1800K) – Tunable White (2700K – 5000K) *Custom CCT ranges available upon request
  • High CRI +90  *Ultra High CRI +95 available upon request)
  • Light Distributions: Spot 12° - Medium 24° - Flood 36°
  • Dimming Protocols:  0-10v (1%) - 0-10v (Fade to Black) – ELV – DALI - Lutron Ecosystem
  • Available in Wet location
  • Emergency options available
  • Accommodates up to 3 beam shaping and optical accessories
  • Wide range of trim and reflector finishes
  • Title 24 Compliant
  • 5-year limited warranty
3
3 3 3
$standardalt$
Photometric data: Type C Polar Curves
3
