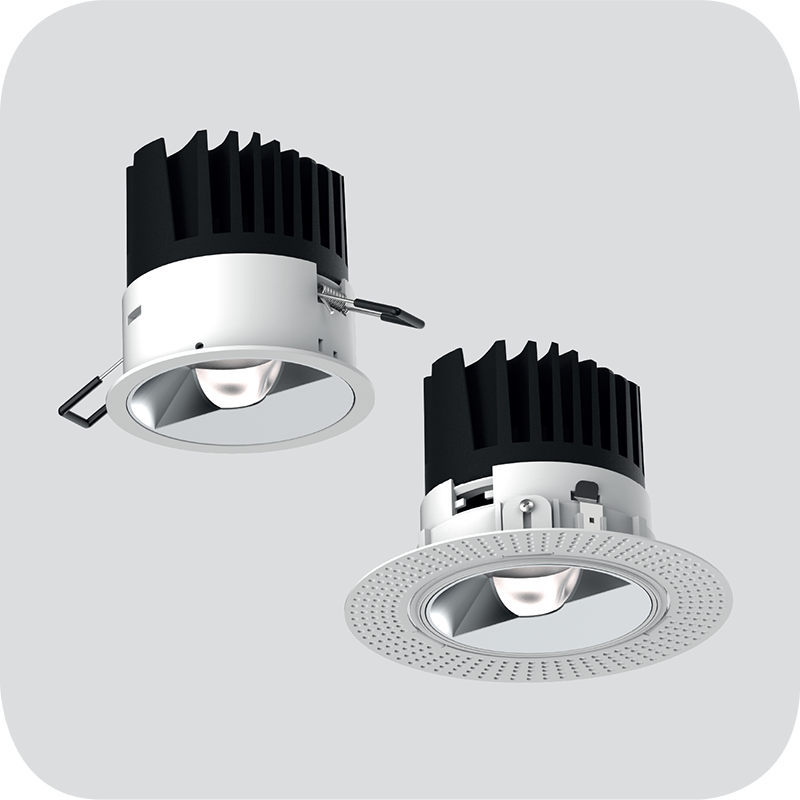

3" Round Wallwasher

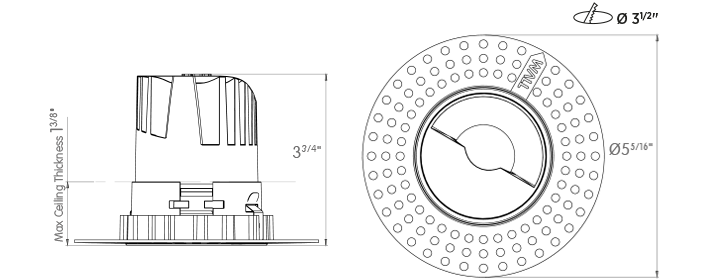

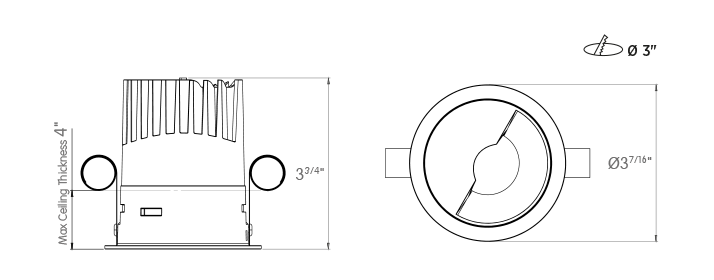

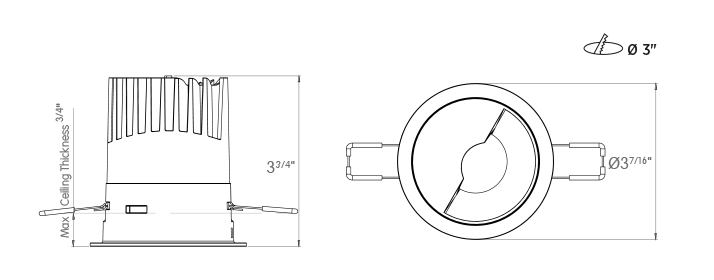

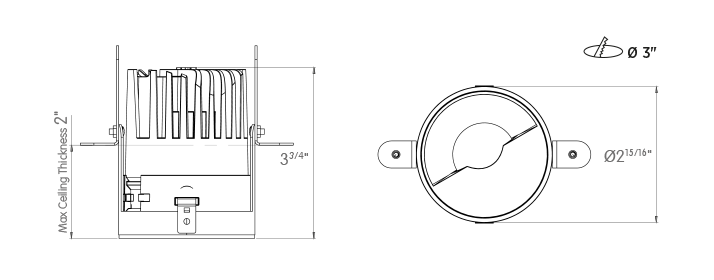

Recessed with Trim | Trimless | Millwork

Spec-grade performance LED downlights. Optimal performance and aesthetics for hospitality, high-end residential, and corporate projects. The Chameleon 3" Round Wallwasher Recessed with Trim | Trimless | Millwork, is part of a complete family of 3” fixtures, offering a wide range of mounting options, light distributions, color temperatures, reflector finishes, and optical accessories. The Chameleon wallwasher offers an even wash on walls up to 12’-0” using recommended setback and on center spacing. The optimal setback for fixtures should be 1/4th of the wall height with an on-center spacing of 1.4 x the setback. Our Downlights family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • True 3” overall diameter
  • Accommodates ceiling thicknesses up to 3”
  • Mounting: Trim - Trimless - Millwork
  • Delivered Lumens:
    • Standard Output: 950 lumens
    • High Output: 1300 lumens
    • Custom Output: 300 – 1300 lumens (100 lumen increments)
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K – Dim to Warm (3000K – 1800K) –Tunable White (2700K – 5000K) *Custom CCT ranges available upon request
  • Standard CRI +80 and High CRI +90 *Ultra High CRI +95 available upon request
  • Dimming Protocols: 0-10v (1%) - 0-10v (Fade to Black) – ELV – DALI - Lutron Ecosystem
  • Optimal setback of 1/4 wall height and optimal on-center spacing of 1.4 x wall setback value.
  • High uniformity light distribution Emax : Emin. = 3:1
  • Wide range of trim and reflector finishes
  • Available in Wet location
  • Emergency options available
  • Title 24 Compliant
  • 5-year limited warranty
3
3 3 3 3
$standardalt$
Photometric data: Type C Polar Curves
3

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V

Calculate
