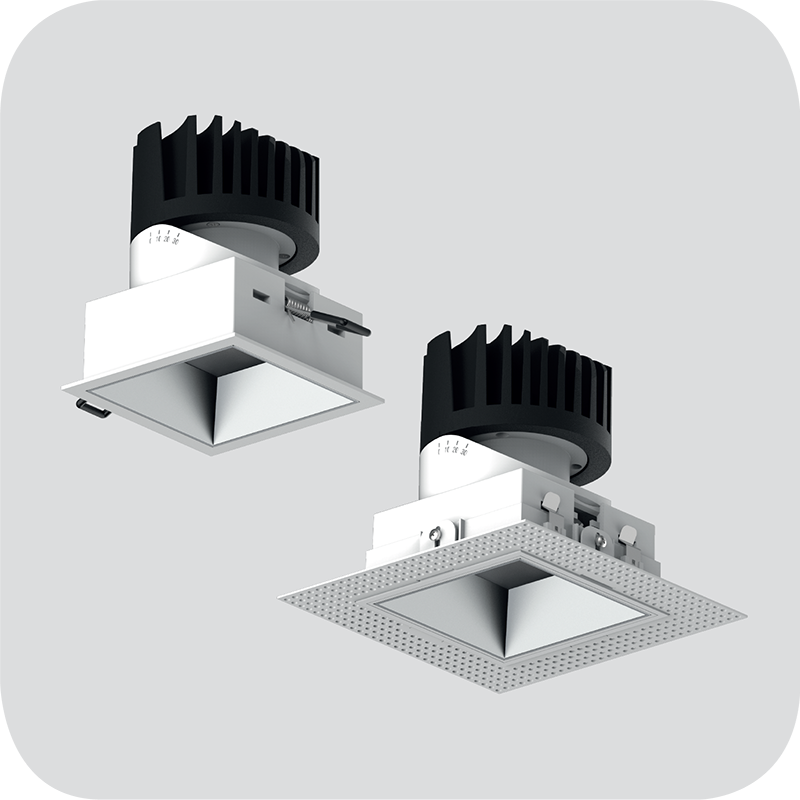

3" Square Adjustable

Recessed with Trim | Trimless | Millwork

Spec-grade performance LED downlights. Optimal performance and aesthetics for hospitality, high-end residential and corporate projects. The Chameleon 3" Square Adjustable Downlight Recessed with Trim | Trimless | Millwork, is part of a complete line of 3” downlights offering a wide range of mounting options, light distributions, color temperatures, reflector finishes, and optical accessories. Our Downlights family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • True 3”x 3” overall size
  • Accommodates ceiling thicknesses up to 1 ½” without beam clipping
  • Adjustable gear driven tilt from 0° to 30° with lockable rotation up to 720°
  • Mounting: Trim - Trimless - Millwork
  • Delivered Lumens:
    • Standard Output: 950 lumens
    • High Output: 1300 lumens
    • Custom Output: 300 – 1300 lumens (100 lumen increments)
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K – Dim to Warm (3000K – 1800K) –Tunable White (2700K – 5000K) *Custom CCT ranges available upon request
  • Available in Standard CRI +80, and High CRI +90, (Ultra High CRI +95 available upon request)
  • Light Distributions: Narrow 15° - Medium 25° - Flood 40° - Batwing 60°
  • Dimming Protocols: 0-10v (1%) - 0-10v (Fade to Black) – ELV – DALI - Lutron Ecosystem
  • Available in Wet location
  • Emergency options available
  • Accommodates up to 3 beam shaping and optical accessories
  • Wide range of trim and reflector finishes
  • Title 24 Compliant
  • 5-year limited warranty
3
3 3 3 3
$standardalt$

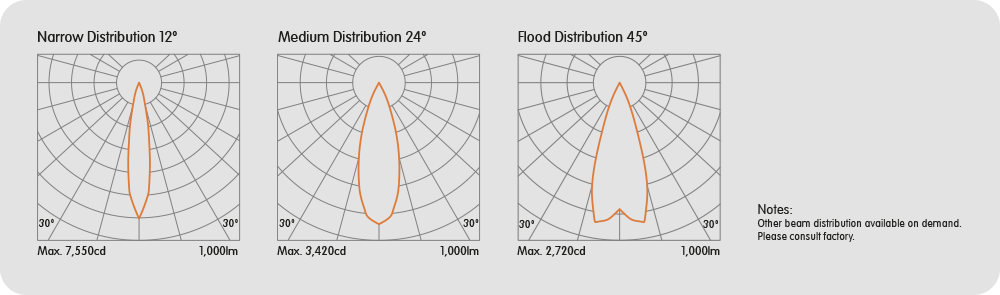

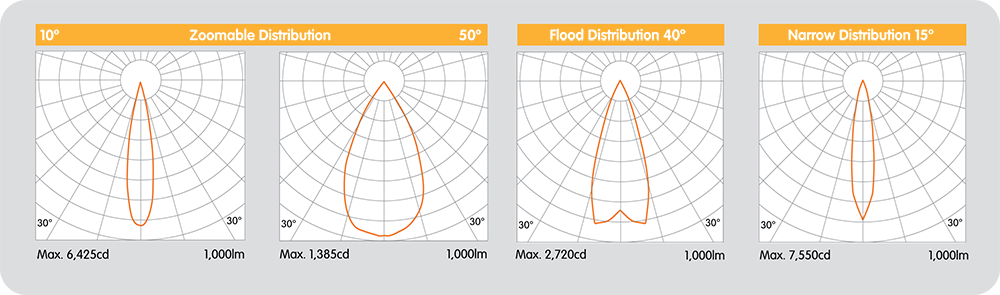

Photometric data: Type C Polar Curves
3
