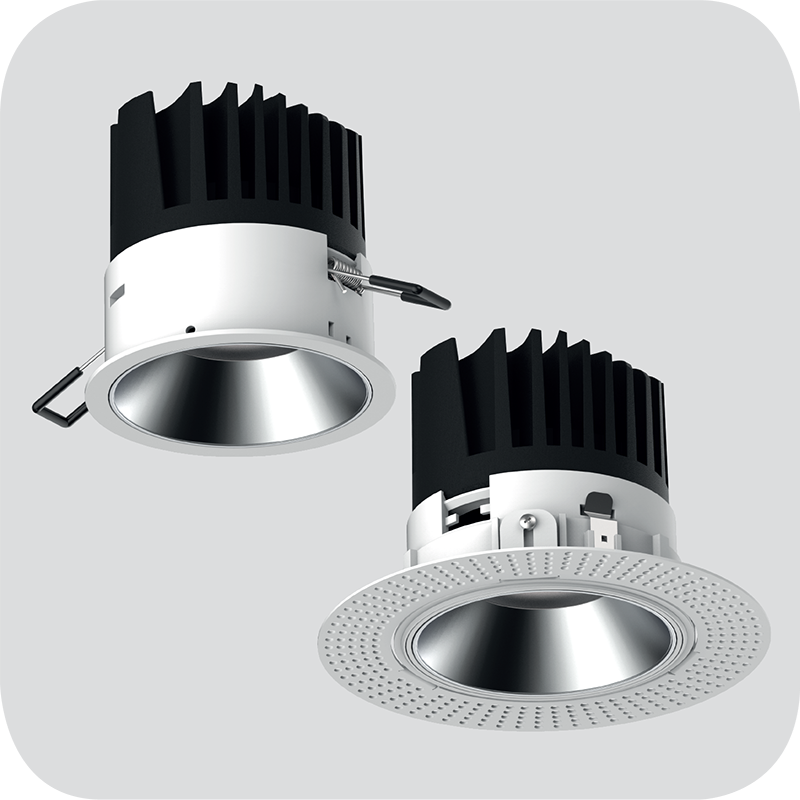

4" Round Fixed

Recessed with Trim | Trimless | Millwork

Spec-grade performance LED downlights. Optimal performance and aesthetics for hospitality, commercial, high-end residential and corporate projects. Chameleon 4" Round Fixed Downlight Recessed with Trim | Trimless | Millwork, offers a high lumen output and precision optics, with a wide range of mountings options, reflector finishes, and optical accessories. Our Downlights family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • True 4” overall diameter
  • Up to 2500lm delivered output *Custom lumen packages available upon request
  • Accommodates ceiling thicknesses up to 3”

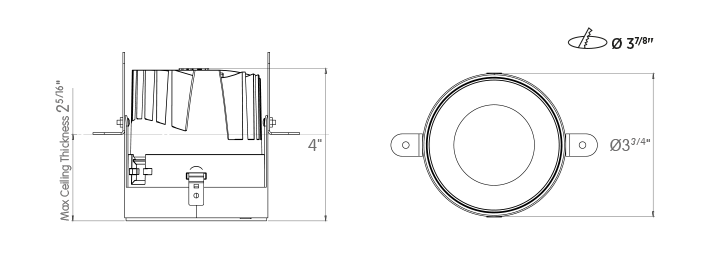

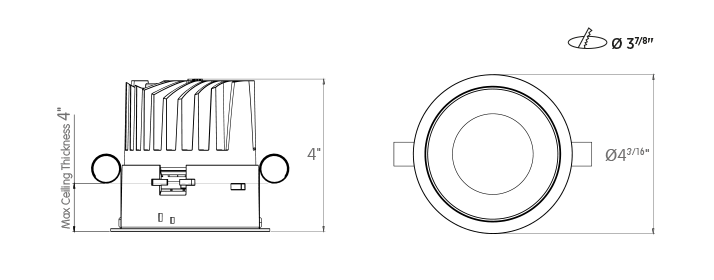

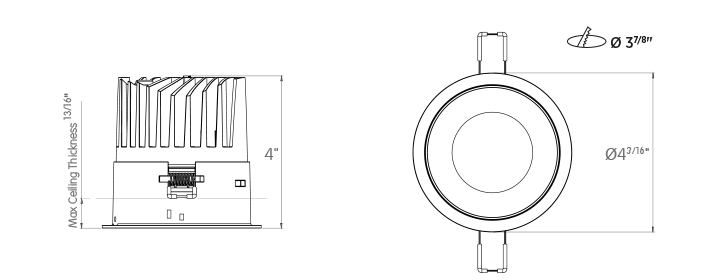

  • Mounting: Trim - Trimless - Millwork
  • Light Distributions: Narrow 15°- Medium 25°- Flood 40°- and Batwing 60°
  • CRI: +80 - +90 - +95
  • Color Temperatures (CCT): 2700K - 3000K - 3500K - 4000K - Dim to Warm (3000K-1900K) - Tunable White (2700K-5000K) *Custom CCT ranges available upon request
  • Dimming Protocols: 0-10v (1%) - 0-10v (Fade to Black) – ELV – DALI - Lutron Ecosystem
  • Accommodates up to 3 beam shaping and optical accessories
  • Wide range of trim and reflectors finishes
  • Available in Wet location
  • Emergency options available
  • Title 24 Compliant
  • 5-year limited warranty
4
4 4 4 4
$standardalt$

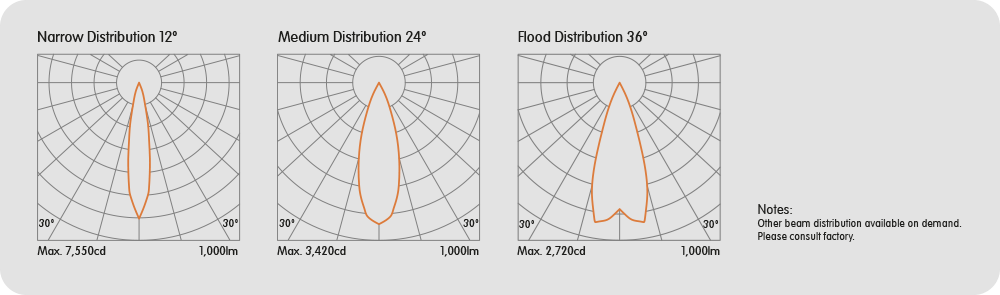

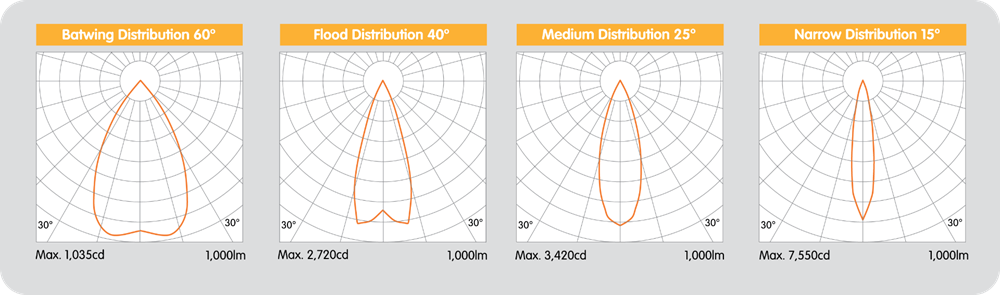

Photometric data: Type C Polar Curves
4
