4" Round Wallwasher

Recessed with Trim | Trimless | Millwork

Spec-grade LED wallwasher with optimal performance and aesthetics for hospitality, commercial, high-end residential and corporate projects. The Chameleon 4" Round Wallwasher Recessed with Trim | Trimless | Millwork, offers a high lumen output with precision optics for even illumination of vertical surfaces in wallwashing applications. As with all fixtures in the Chameleon family, wide range of mountings options, reflector finishes, and optical accessories are available. Our Downlights family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • True 4” overall diameter
  • Up to 2500lm delivered output *Custom lumen packages available upon request
  • Accommodates ceiling thicknesses up to 3”

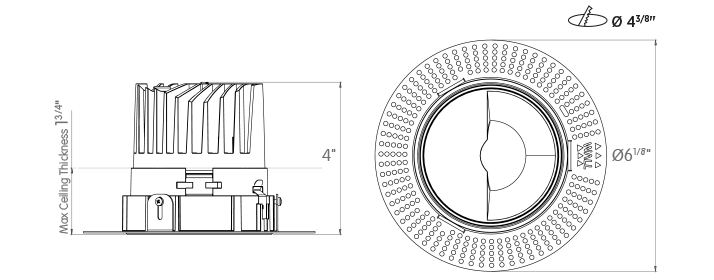

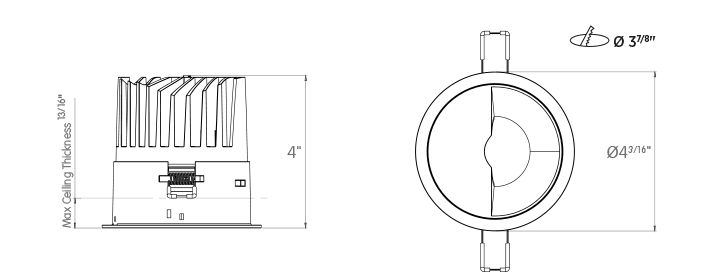

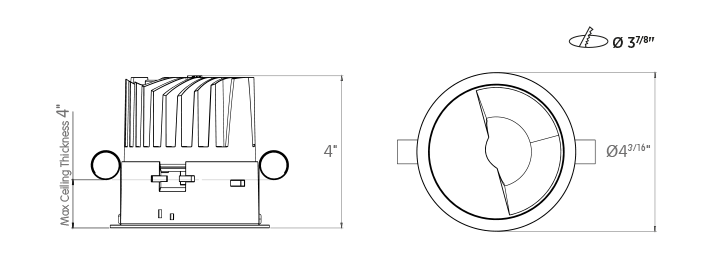

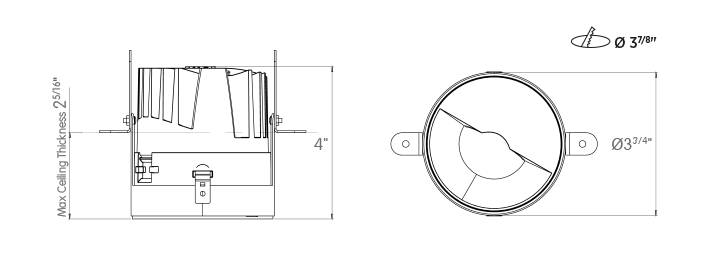

  • Mounting: Trim - Trimless - Millwork
  • CRI: +80 - +90 - +95
  • Color Temperatures (CCT): 2700K - 3000K - 3500K - 4000K - Dim to Warm (3000K-1900K) - Tunable White (2700K-5000K) *Custom CCT ranges available upon request
  • Dimming Protocols: 0-10v (1%) - 0-10v (Fade to Black) – ELV – DALI - Lutron Ecosystem
  • High uniformity light distribution Emax : Emin. = 3:1
  • Wide range of trim and reflectors finishes
  • Available in Wet location
  • Emergency options available
  • Title 24 Compliant
  • 5-year limited warranty
4
4 4 4 4
$standardalt$

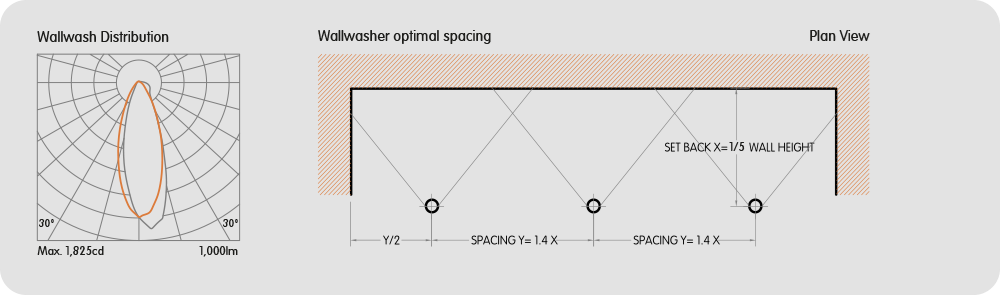

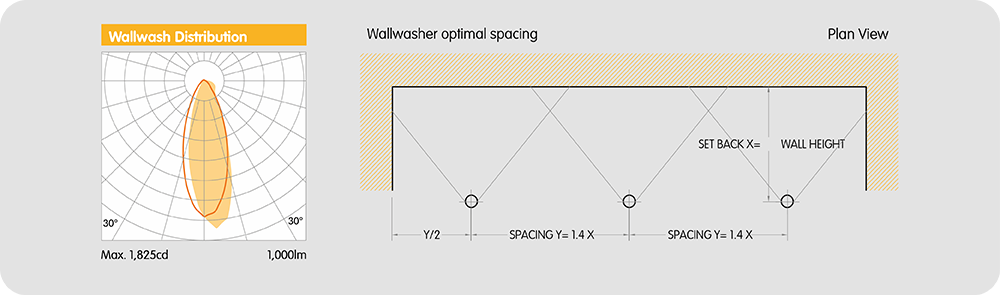

Photometric data: Type C Polar Curves
4

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V

Calculate
