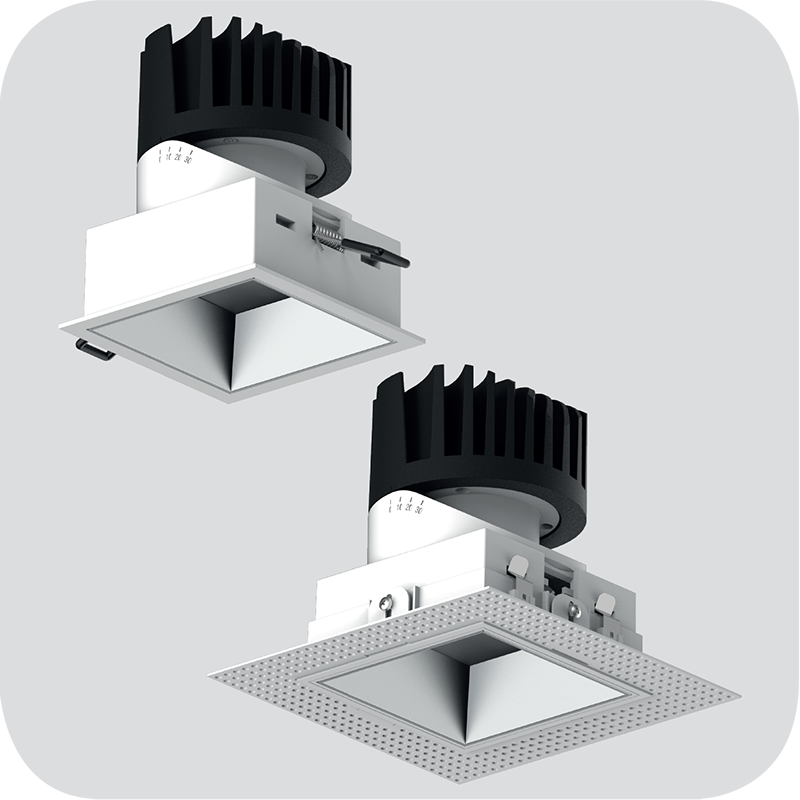

4" Square Adjustable-C4-S-A

Recessed with Trim | Trimless | Millwork

Spec-grade performance LED downlights. Optimal for hospitality, commercial, high-end residential and corporate projects. Chameleon 4" Square Adjustable Downlight Recessed with Trim | Trimless | Millwork, offers a high output, precise optics, a wide range of mountings options, reflector finishes, and optical accessories. Our Downlights family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • True 4”x 4” overall size
  • Up to 2500lm delivered output *Custom lumen packages available upon request
  • Accommodates ceiling thicknesses up to 1 ½” without beam clipping

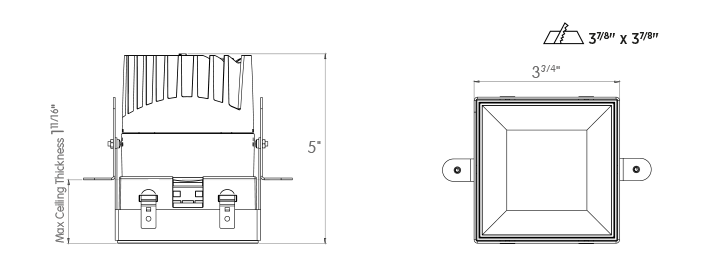

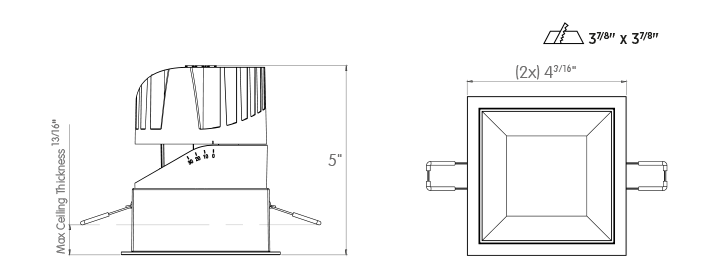

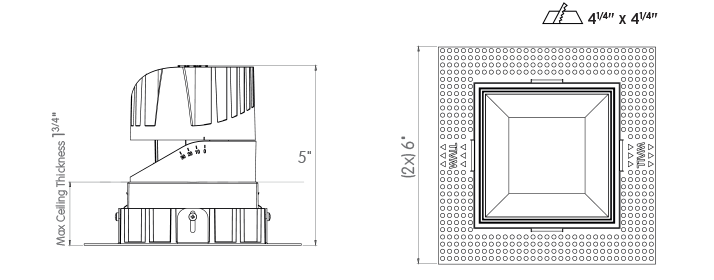

  • Mounting: Trim - Trimless - Millwork
  • CRI: +80 - +90 - +95
  • Color Temperatures (CCT): 2700K - 3000K - 3500K - 4000K - Dim to Warm (3000K-1900K) - Tunable White (2700K-5000K) *Custom CCT ranges available upon request
  • Dimming Protocols: 0-10v (1%) - 0-10v (Fade to Black) – ELV – DALI - Lutron Ecosystem
  • Gear driven tilt from 0° to 35° and 720° lockable rotation
  • Zoomable Lens standard with adjustability from 10° to 50° (tighter optics available upon request)
  • Accommodates up to 3 beam shaping and optical accessories
  • Wide range of trim and reflectors finishes
  • Available in Wet location
  • Emergency options available
  • Title 24 Compliant
  • 5-year limited warranty
4
4 4 4 4
$standardalt$
Photometric data: Type C Polar Curves
4
