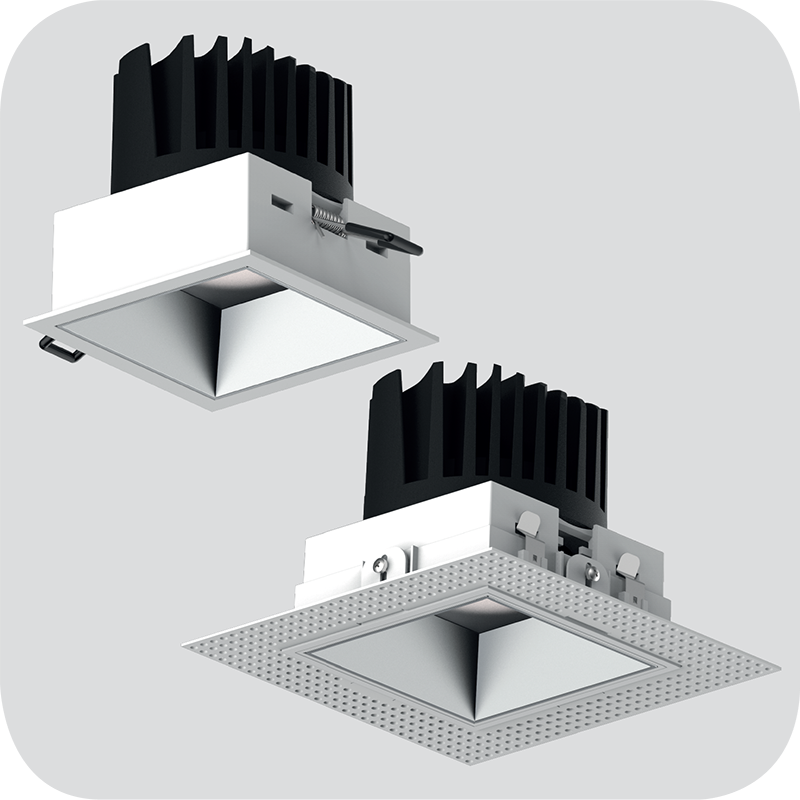

4" Square Fixed
Recessed with Trim | Trimless | Millwork
Specification grade LED downlights, with optimal performance and aesthetics for hospitality, commercial, high-end residential and corporate projects. The Chameleon 4" Square Fixed Downlight Recessed with Trim | Trimless | Millwork, offers a high lumen output with precision optics, along with a wide range of mountings options, reflector finishes, and optical accessories. Our Downlights family complies with the Build America, Buy America (BABA) requirements.
Specifications
- True 4”x 4” overall size
- Up to 2500lm delivered output *Custom lumen packages available upon request
- Accommodates ceiling thicknesses up to 1” standard and can accommodate ceiling thicknesses up to 3” when specified with extension bracket

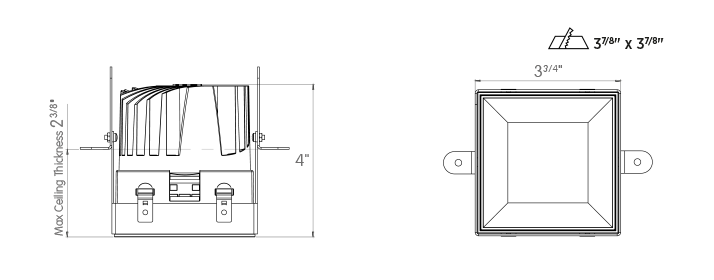

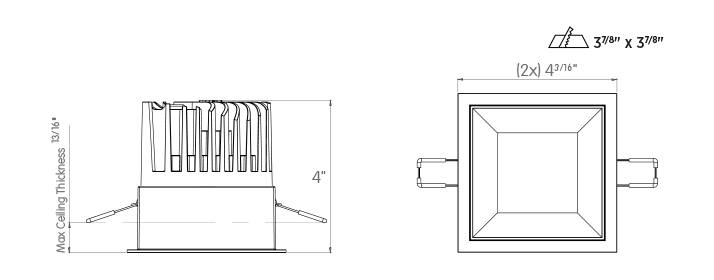

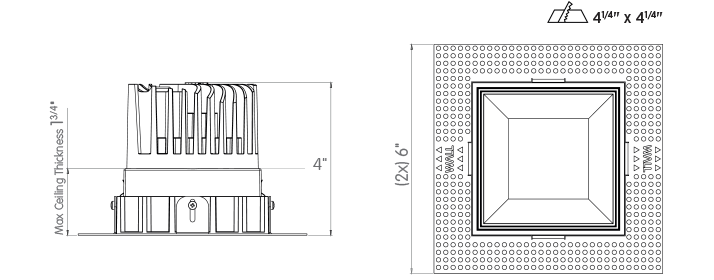

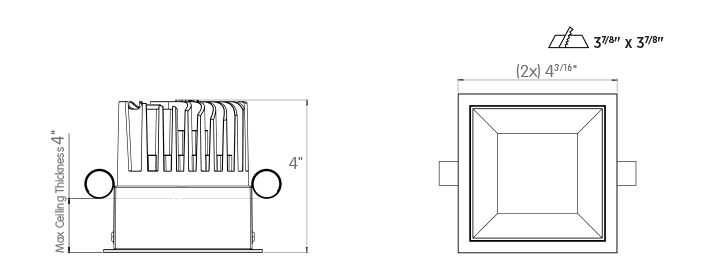

- Mounting: Trim - Trimless - Millwork
- Light Distributions: Narrow 15°- Medium 25°- Flood 40°- and Batwing 60°
- CRI: +80 - +90 - +95
- Color Temperatures (CCT): 2700K - 3000K - 3500K - 4000K - Dim to Warm (3000K-1900K) - Tunable White (2700K-5000K) *Custom CCT ranges available upon request
- Dimming Protocols: 0-10v (1%) - 0-10v (Fade to Black) – ELV – DALI - Lutron Ecosystem
- Accommodates up to 3 beam shaping and optical accessories
- Wide range of trim and reflectors finishes
- Available in Wet location
- Emergency options available
- Title 24 Compliant
- 5-year limited warranty
Photometric data: Type C Polar Curves
