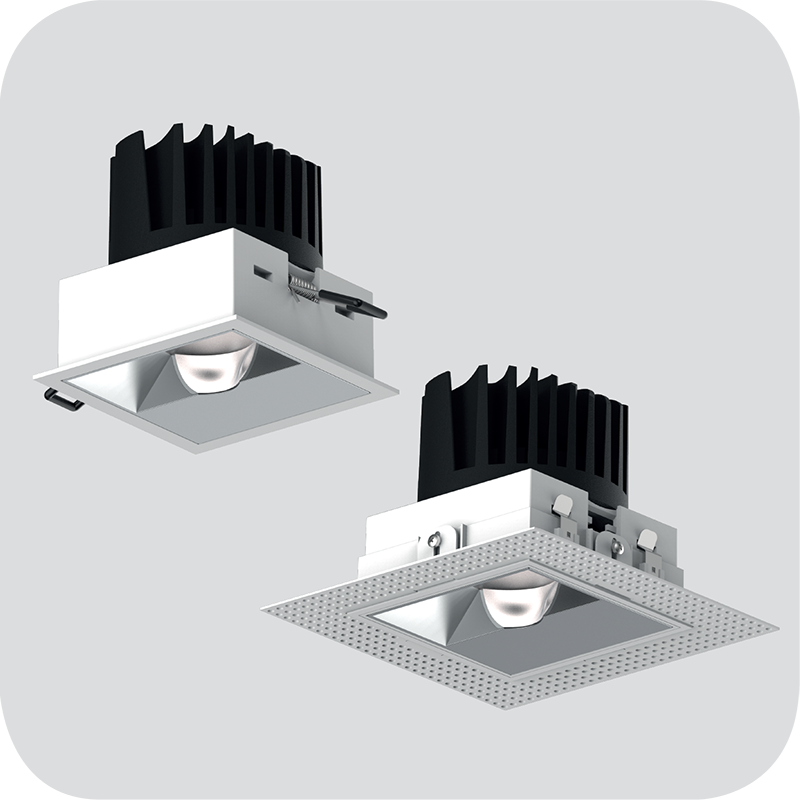

4" Square Wallwasher

Recessed with Trim | Trimless | Millwork

Spec-grade performance LED downlights. Optimal for hospitality, commercial, high-end residential and corporate projects. Chameleon 4" Square Wallwasher Recessed with Trim | Trimless | Millwork, offers a high output, precise optics, a wide range of mountings options, reflector finishes, and optical accessories. Our Downlights family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • True 4”x 4” overall size
  • Up to 2500lm delivered output * Custom lumen packages available upon request
  • Accommodates ceiling thicknesses up to 1” standard and can accommodate ceiling thicknesses up to 3” when specified with extension bracket

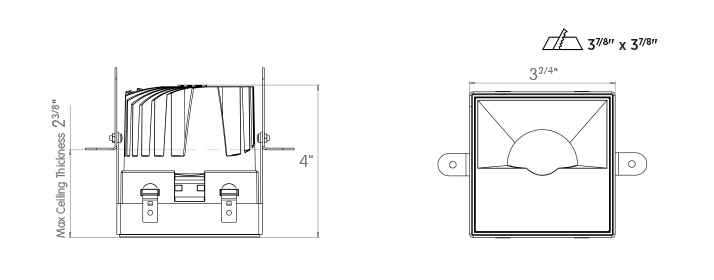

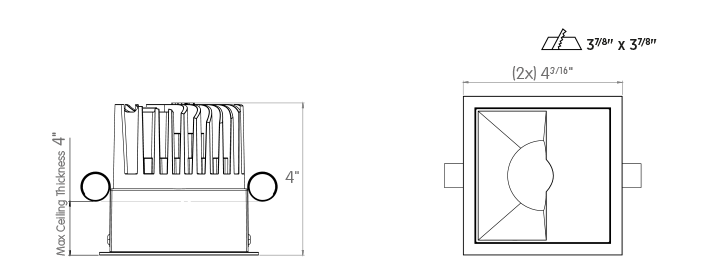

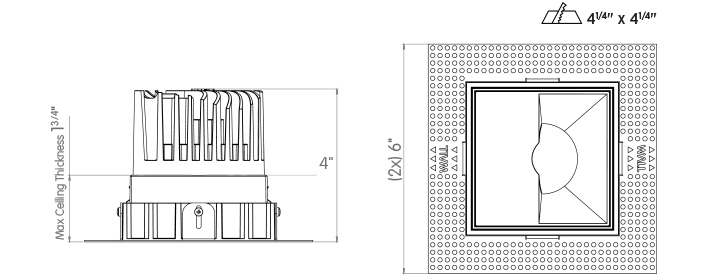

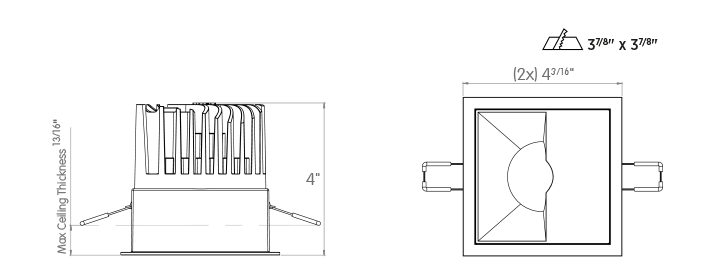

  • Mounting: Trim - Trimless - Millwork
  • CRI: +80 - +90 - +95
  • Color Temperatures (CCT): 2700K - 3000K - 3500K - 4000K - Dim to Warm (3000K-1900K) - Tunable White (2700K-5000K) *Custom CCT ranges available upon request
  • Dimming Protocols: 0-10v (1%) - 0-10v (Fade to Black) – ELV – DALI - Lutron Ecosystem
  • High uniformity light distribution Emax : Emin. = 3:1
  • Wide range of trim and reflectors finishes
  • Available in Wet location
  • Emergency options available
  • Title 24 Compliant
  • 5-year limited warranty
4
4 4 4 4
$standardalt$
Photometric data: Type C Polar Curves
4
