Break Opal Linear Mini

SPECTER magnetic track system offers unlimited design configurations across both the horizontal and vertical planes of a space. SPECTER’s minimal profile can extend continuously through spaces creating a sleek and visually discreet slot which blends into the environment. The magnetic properties of the system allow fixtures to be installed, moved, and removed with ease while still maintaining a secure magnetic adhesion. SPECTER track is compatible with a range of fixtures, including accents, wallwashers, general illumination, and pendants, providing specifiers with maximum design flexibility.

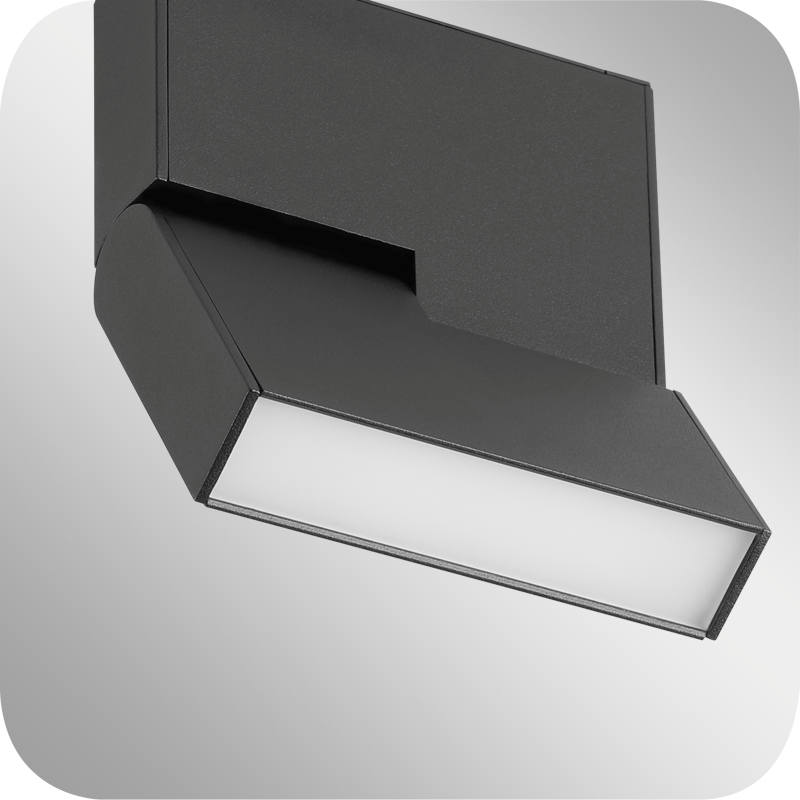

The Break Opal Linear Mini module is a high performance, adjustable trackhead offering a wide range of optics and sizes. Break has an adjustable tilt up to 90° which allows for illumination of both the vertical and horizontal planes. Due to its excellent uniformity, Break is optimal for general illumination as well as wallwashing applications.

Specifications

  • Up to 1043lm delivered output

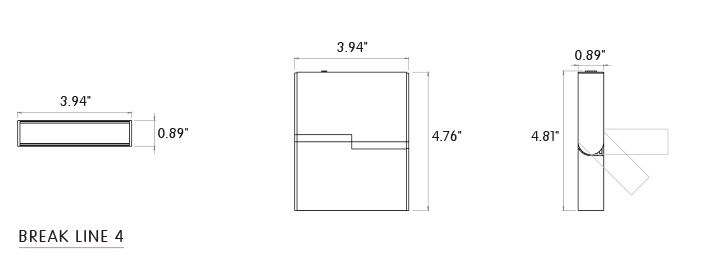

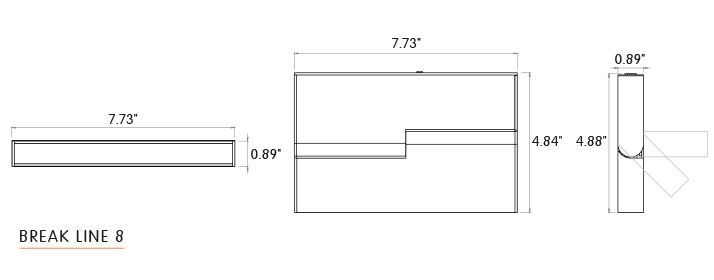

  • Available in 2 sizes: 4” - 8”
  • Available in Opal Lens
  • Standard Optics: 120° Lambertian1
  • Available Color Temperatures (CCT): 2700K - 3000K - 3500K - 4000K
  • Standard CRI +80 and High CRI +90
  • Fixtures designed to mount in all SPECTER tracks
  • For fixture dimming refer to track driver specifications2
  • Available in 4 standard finishes: Black - White - Silver - Bronze
  • 5-year limited warranty

  • 1 Lambertian distribution only available in Opal
    2 Dimming options, 0-10V, ELV and DALI
Break Opal Linear Mini
$standardalt$
Photometric data: Type C Polar Curves
Break Opal Linear Mini

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V
