Break Dot Linear Standard
SPECTER magnetic track system offers unlimited design configurations across both the horizontal and vertical planes of a space. SPECTER's minimal profile can extend continuously through spaces creating a sleek and visually discreet slot which blends into the environment. The magnetic properties of the system allow fixtures to be installed, moved, and removed with ease while still maintaining a secure magnetic adhesion. SPECTER track is compatible with a range of fixtures, including accents, wallwashers, general illumination, and pendants, providing specifiers with maximum design flexibility.

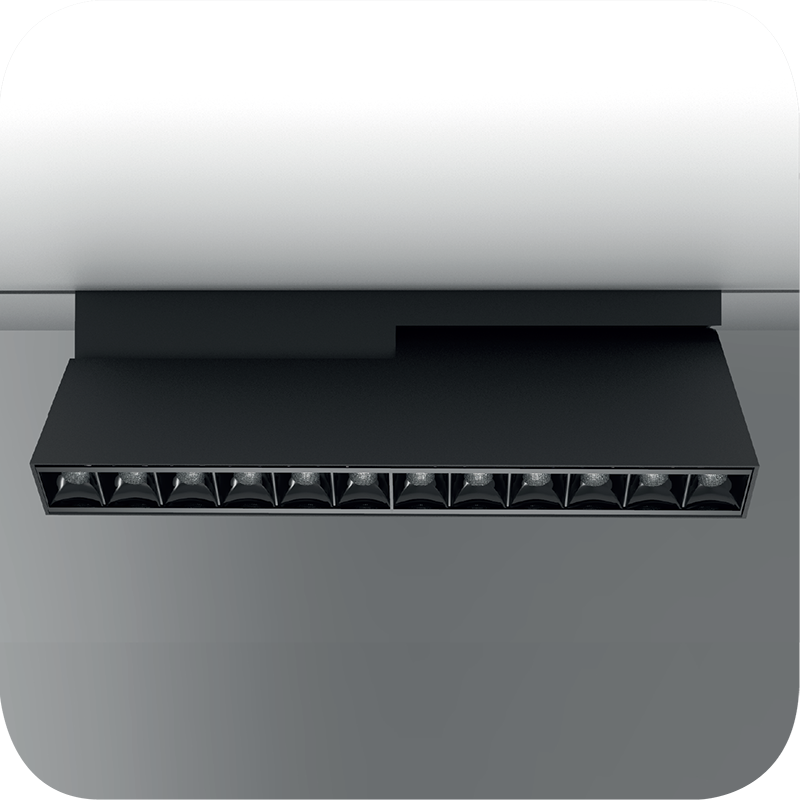

The Break Dot Linear Standard module is a high performance, adjustable trackhead offering a wide range of optics and sizes. Break has an adjustable tilt up to 90° which allows for illumination of both the vertical and horizontal planes. Due to its excellent uniformity, Break is optimal for general illumination as well as wallwashing applications.
Specifications
- Up to 1900lm delivered output
- Available in 3 sizes: 3” - 6” - 12”
- Available in Low Glare Baffles

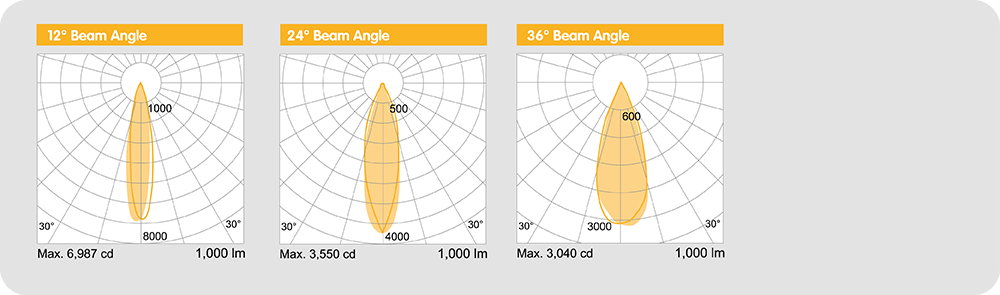

- Standard Optics: 12° - 24° - 36°
- Available Color Temperatures (CCT): 2700K - 3000K - 3500K - 4000K
- Standard CRI +80 and High CRI +90
- Fixtures designed to mount in all SPECTER tracks
- For fixture dimming refer to track driver specifications1
- Available in 4 standard finishes: Black - White - Silver - Bronze
- 5-year limited warranty
1 Dimming options, 0-10V, ELV and DALI
